ECS晶振CSM-7X是一款緊湊型表面貼裝石英晶體，小體積尺寸采用11.35毫米x4.8毫米x4.3毫米雙焊盤封裝，兩腳貼片晶振，無源晶振，石英晶體諧振器，無鉛環保晶振。CSM-7X提供了50ppm在-10℃ ~ 70℃的溫度范圍內保持穩定，頻率范圍：3.57MHz~70MHz，該器件是對穩定性要求不高應用的理想選擇。CSM-7X是低成本SMD晶振的絕佳選擇。CSM-7X (5PX) 外殼最大高度為4.3毫米。在電阻焊接金屬封裝中。降低 (5px)封裝提供3.2mm的高度。SMD晶體ECS-120.003-18-5PXEN對穩定性要求不高應用的理想選擇
| 原廠編碼 | ECS晶振 | 系列 | 頻率 | 頻率溫度度 |
| ECS-100-18-5PX-TR | CRYSTAL 10.0000MHZ 18PF SMD | CSM-7X | 10MHz | ±50ppm |
| ECS-100-S-5PX-TR | CRYSTAL 10.0000MHZ SERIES SMD | CSM-7X | 10MHz | ±50ppm |
| ECS-102.4-18-5PXEN | CRYSTAL 10.2400MHZ 18PF SMD | CSM-7X | 10.24MHz | ±50ppm |
| ECS-102.45-16-5PX-TR | CRYSTAL 10.2450MHZ 16PF SMD | CSM-7X | 10.245MHz | ±50ppm |
| ECS-110.5-18-5PXEN-TR | CRYSTAL 11.0592MHZ 18PF SMD | CSM-7X | 11.0592MHz | ±50ppm |
| ECS-110.5-20-5PX-TR | CRYSTAL 11.0592MHZ 20PF SMD | CSM-7X | 11.0592MHz | ±50ppm |
| ECS-110.5-32-5PX-TR | CRYSTAL 11.0592MHZ 32PF SMD | CSM-7X | 11.0592MHz | ±50ppm |
| ECS-110.5-S-5PX-TR | CRYSTAL 11.0592MHZ SERIES SMD | CSM-7X | 11.0592MHz | ±50ppm |
| ECS-110-18-5PXEN-TR | CRYSTAL 11.0000MHZ 18PF SMD | CSM-7X | 11MHz | ±50ppm |
| ECS-115.2-18-5PXEN | CRYSTAL 11.5200MHZ 18PF SMD | CSM-7X | 11.52MHz | ±50ppm |
| ECS-120.003-18-5PXEN | CRYSTAL 12.000393MHZ 18PF SMD | CSM-7X | 12.000393MHz | ±50ppm |
| ECS-120-18-5PX-TR | CRYSTAL 12.0000MHZ 18PF SMD | CSM-7X | 12MHz | ±50ppm |
| ECS-120-32-5PX-TR | CRYSTAL 12.0000MHZ 32PF SMD | CSM-7X | 12MHz | ±50ppm |
| ECS-120-S-5PX-TR | CRYSTAL 12.0000MHZ SERIES SMD | CSM-7X | 12MHz | ±50ppm |
| ECS-122.8-18-5PXEN-TR | CRYSTAL 12.2880MHZ 18PF SMD | CSM-7X | 12.288MHz | ±50ppm |
| ECS-122.8-20-5PX-TR | CRYSTAL 12.2880MHZ 20PF SMD | CSM-7X | 12.288MHz | ±50ppm |
| ECS-122.8-S-5PX-TR | CRYSTAL 12.2880MHZ SERIES SMD | CSM-7X | 12.288MHz | ±50ppm |
| ECS-135.6-12-5PX-TR | CRYSTAL 13.5600MHZ 12PF SMD | CSM-7X | 13.56MHz | ±50ppm |
| ECS-135-18-5PXEN-TR | CRYSTAL 13.5168MHZ 18PF SMD | CSM-7X | 13.5168MHz | ±50ppm |
| ECS-143-18-5PXEN-TR | CRYSTAL 14.31818MHZ 18PF SMD | CSM-7X | 14.31818MHz | ±50ppm |
| ECS-143-20-5PX-TR | CRYSTAL 14.31818MHZ 20PF SMD | CSM-7X | 14.31818MHz | ±50ppm |
| ECS-143-S-5PX-TR | CRYSTAL 14.31818MHZ SERIES SMD | CSM-7X | 14.31818MHz | ±50ppm |
| ECS-147.4-18-5PXEN-TR | CRYSTAL 14.7456MHZ 18PF SMD | CSM-7X | 14.7456MHz | ±50ppm |
| ECS-147.4-20-5PX-TR | CRYSTAL 14.7456MHZ 20PF SMD | CSM-7X | 14.7456MHz | ±50ppm |
| ECS-147.4-S-5PX-TR | CRYSTAL 14.7456MHZ SERIES SMD | CSM-7X | 14.7456MHz | ±50ppm |
| ECS-150-18-5PXEN | CRYSTAL 15.0000MHZ 18PF SMD | CSM-7X | 15MHz | ±50ppm |
| ECS-150-S-5PX-TR | CRYSTAL 15.0000MHZ SERIES SMD | CSM-7X | 15MHz | ±50ppm |
| ECS-160.003-18-5PXEN-TR | CRYSTAL 16.000312MHZ 18PF SMD | CSM-7X | 16.000312MHz | ±50ppm |
| ECS-160.003-18-5PX-TR | CRYSTAL 16.000312MHZ 18PF SMD | CSM-7X | 16.000312MHz | ±50ppm |
| ECS-160-18-5PXEN-TR | CRYSTAL 16.0000MHZ 18PF SMD | CSM-7X | 16MHz | ±50ppm |
| ECS-160-20-5PX-TR | CRYSTAL 16.0000MHZ 20PF SMD | CSM-7X | 16MHz | ±50ppm |
| ECS-160-S-5PX-TR | CRYSTAL 16.0000MHZ SERIES SMD | CSM-7X | 16MHz | ±50ppm |
| ECS-162.57-18-5PXEN-TR | CRYSTAL 16.2570MHZ 18PF SMD | CSM-7X | 16.257MHz | ±50ppm |
| ECS-163-18-5PXEN-TR | CRYSTAL 16.3840MHZ 18PF SMD | CSM-7X | 16.384MHz | ±50ppm |
| ECS-177.3-18-5PXEN | CRYSTAL 17.734475MHZ 18PF SMD | CSM-7X | 17.734475MHz | ±50ppm |
| ECS-180-18-5PXEN | CRYSTAL 18.0000MHZ 18PF SMD | CSM-7X | 18MHz | ±50ppm |
| ECS-180-S-5PX-TR | CRYSTAL 18.0000MHZ SERIES SMD | CSM-7X | 18MHz | ±50ppm |
| ECS-184-18-5PX-TR | CRYSTAL 18.4320MHZ 18PF SMD | CSM-7X | 18.432MHz | ±50ppm |
SMD晶體ECS-120.003-18-5PXEN對穩定性要求不高應用的理想選擇
CSM-7X晶振特征：

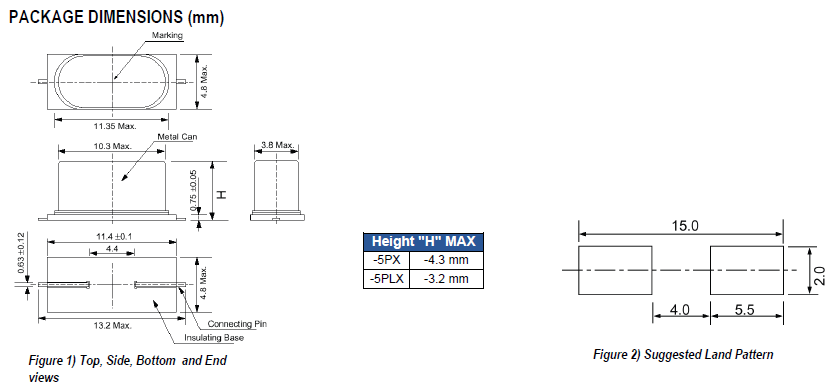

包裝尺寸：11.40x4.80mm毫米石英晶體諧振器
頻率：3.57MHz~ 70MHz
容忍：30ppm
穩定性：50ppm
工作溫度：-10℃~ 70℃
封裝尺寸：11.35x4.8x 4.3mm
頻率范圍：3.57MHz~70MHz
溫度范圍：-10℃~70℃
寬容-30ppm
穩定性-50ppm
符合RoHS 3和REACH標準
