當前位置：首頁 » 日產進口晶振 » 西鐵城晶振 » CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振

prevnext

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振

頻率：52MHz

尺寸：3.2x2.5mm

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，日本進口晶振，CITIZEN西鐵城晶振，型號CS325，編碼為：CS325-52.000MABJ-UT，頻率為：52MHz，是一款小體積晶振尺寸3.2x2.5x0.55mm陶瓷封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛環保晶振，工作溫度范圍：-40℃至+85℃，具有超小型，輕薄型，高密度SMD型，可靠的陶瓷包裝和優良的環境特性。適用于通信設備，智能手機，平板電腦，無線網絡，藍牙模塊，汽車電子，醫療設備，影音設備，數碼電子，智能家居等應用。

訂購熱線：0755-27876201

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，參數表

Item	Model		CS325	Conditions
Nominal Frequency		0	12.0MHz~54.0MHz(Fundamental)	Need to contact us for the available frequency
Frequency Tolerance		△ f/f0	±30ppm	at 25?C
Frequency Tolerance over Operating Temperature Range		△ f/f0	±30ppm	－10℃~＋60℃
Operating Temperature Range		TOPR	－40℃~＋85℃
Storage Temperature Range		TSTR	－55℃~＋125℃
Motional (series) resistance		R1	Refer to the following table	at 25?C
Load capacitance		CL	16.0pF, 18.0pF	Need to specify your requirement
Shunt capacitance		C0	5.0pF Max.
Level of drive		DL	10μW(100μW Max.)
Insulation Resistance		IR	500MΩMin.	DC100V±15V
Aging (first year)		△ f/f0	±5ppm Max.	25℃±3℃

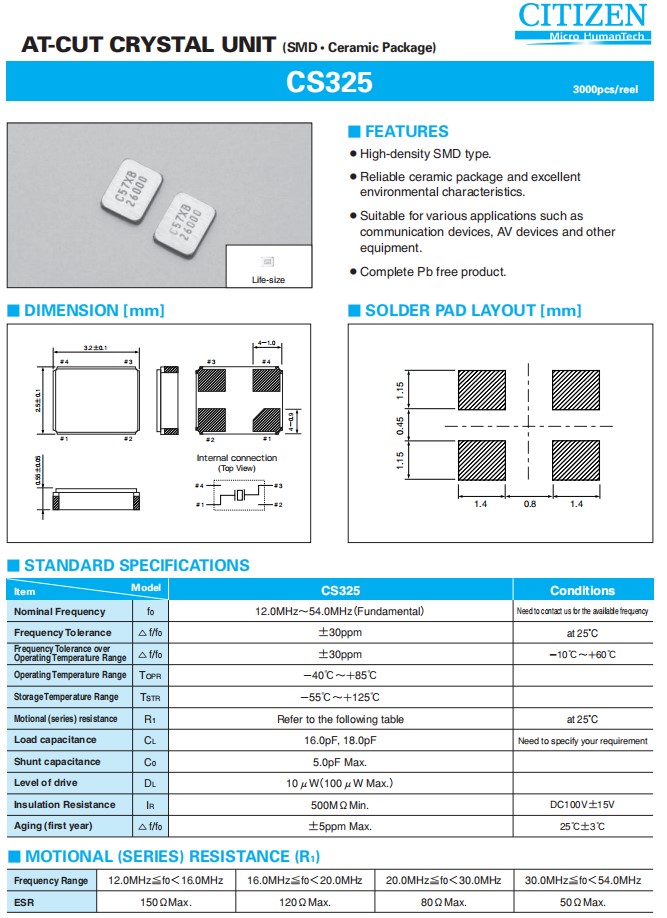

CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振，尺寸圖

晶振廠家	原廠編碼	型號	頻率	頻率穩定度	包裝/封裝	尺寸
Citizen晶振	CS325-19.069928MABJ-UT	CS325	19.069928MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-18.9375MABJ-UT	CS325	18.9375MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-52.000MABJ-UT	CS325	52MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-20.500MABJ-UT	CS325	20.5MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-37.050MABJ-UT	CS325	37.05MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-44.000MABJ-UT	CS325	44MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-53.125MABJ-UT	CS325	53.125MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-40.000MABJ-UT	CS325	40MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-16.384MABJ-UT	CS325	16.384MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-29.49120MABJ-UT	CS325	29.4912MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-26.650MABJ-UT	CS325	26.65MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-33.000MABJ-UT	CS325	33MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-13.000MABJ-UT	CS325	13MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-13.560MABJ-UT	CS325	13.56MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-14.31818MABJ-UT	CS325	14.31818MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-16.000MABJ-UT	CS325	16MHz	±50ppm	SMD-4P	3225石英晶振
Citizen晶振	CS325-18.432MABJ-UT	CS325	18.432MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-19.200MABJ-UT	CS325	19.2MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-24.000MABJ-UT	CS325	24MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-24.576MABJ-UT	CS325	24.576MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-25.000MABJ-UT	CS325	25MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-26.000MABJ-UT	CS325	26MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-27.000MABJ-UT	CS325	27MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-28.6363MABJ-UT	CS325	28.6363MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-30.000MABJ-UT	CS325	30MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-32.000MABJ-UT	CS325	32MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-33.3333MABJ-UT	CS325	33.3333MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-48.000MABJ-UT	CS325	48MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-12.000MABJ-UT	CS325	12MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-24.500MABJ-UT	CS325	24.5MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-24.975MABJ-UT	CS325	24.975MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm
Citizen晶振	CS325-27.120MABJ-UT	CS325	27.12MHz	±50ppm	SMD-4P	3.2x2.5x0.55mm

CS325 52.000MABJ UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振

采購：CS325-52.000MABJ-UT/52MHz/3225mm/±50ppm/18pF/影音設備晶振

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：
