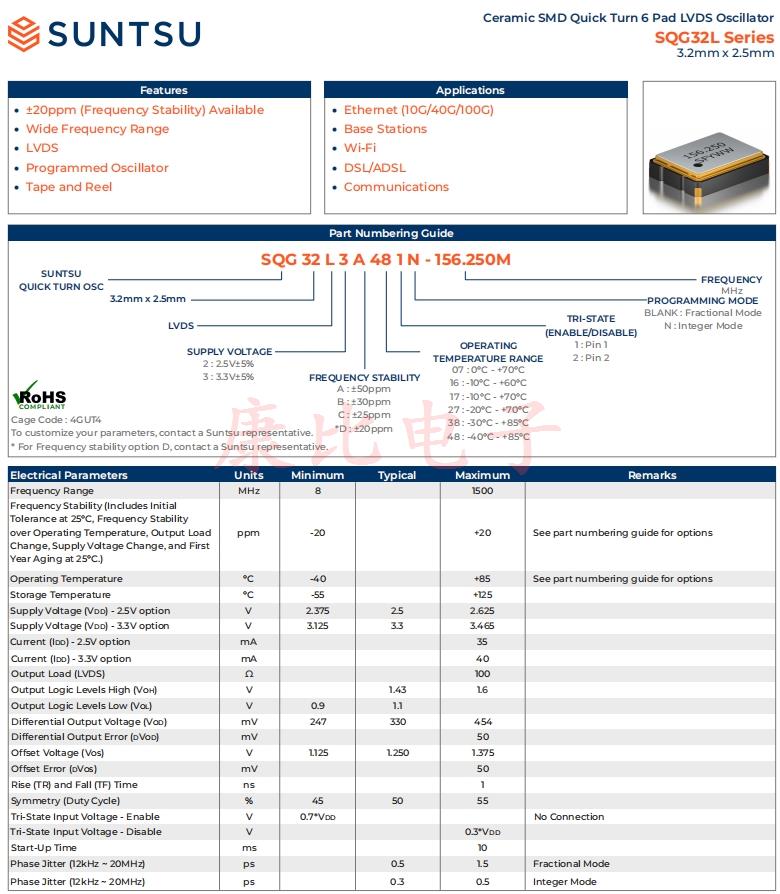

松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器，世界級領先供應商松圖公司，作為實力派供應商，總能開發令人驚喜的優質產品，產品具備卓越的穩定性能，低抖動低損耗的特點，其中主推OSC振蕩器編碼SQG32L2A381-8.000M-1500.000M，型號SQG32L是一款小尺寸晶振3.2X2.5，頻率為8.000M-1500.000M，SMD振蕩器，差分晶振，OSCILLATOR，腳位6PAD，支持輸出LVDS，抖動為1.5ps，電壓2.5V±5%，頻率穩定性±50ppm，工作溫度-30°C-+85°C。
有源晶振產品特點：±20ppm(頻率穩定性)可選，寬頻率范圍，LVDS，可編程振蕩器，磁帶和卷軸，產品主要應用范圍：基站，以太網(10G/40G/100G),基站,Wi-Fi,DSL/ADSL,通信應用程序等領域。松圖編碼SQG32L2A381-8.000M-1500.000M是一款支持LVDS輸出的有源振蕩器.
| Part Number | Manufacturer | Package | Logic | Jitter | Voltage | Stability | Operating Temp. |
| SQG32L2A161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +60°C |
| SQG32L2A171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -10°C - +70°C |
| SQG32L2A271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -20°C - +70°C |
| SQG32L2A381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -30°C - +85°C |
| SQG32L2A481-8.000M-1500.000M | Suntsu歐美晶振 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2A482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±50ppm | -40°C - +85°C |
| SQG32L2B071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | 0°C - +70°C |
| SQG32L2B161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +60°C |
| SQG32L2B171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -10°C - +70°C |
| SQG32L2B271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -20°C - +70°C |
| SQG32L2B381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -30°C - +85°C |
| SQG32L2B481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2B482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±30ppm | -40°C - +85°C |
| SQG32L2C071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | 0°C - +70°C |
| SQG32L2C161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +60°C |
| SQG32L2C171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -10°C - +70°C |
| SQG32L2C271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -20°C - +70°C |
| SQG32L2C381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -30°C - +85°C |
| SQG32L2C481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L2C482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 2.5V±5% | ±25ppm | -40°C - +85°C |
| SQG32L3A071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG32L3A072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | 0°C - +70°C |
| SQG32L3A161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32L3A162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +60°C |
| SQG32L3A171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32L3A172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -10°C - +70°C |
| SQG32L3A271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32L3A272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -20°C - +70°C |
| SQG32L3A381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32L3A382-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -30°C - +85°C |
| SQG32L3A481-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32L3A482-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±50ppm | -40°C - +85°C |
| SQG32L3B071-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32L3B072-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | 0°C - +70°C |
| SQG32L3B161-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32L3B162-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +60°C |
| SQG32L3B171-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32L3B172-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -10°C - +70°C |
| SQG32L3B271-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32L3B272-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -20°C - +70°C |
| SQG32L3B381-8.000M-1500.000M | Suntsu振蕩器 | 3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR | LVDS | 1.5ps | 3.3V±5% | ±30ppm | -30°C - +85°C |
